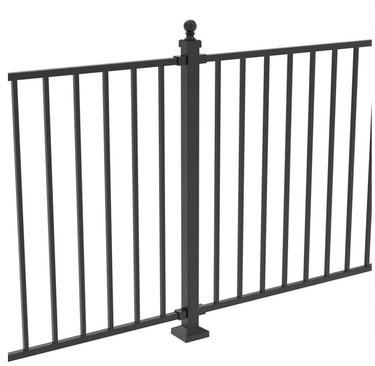

Aluminium Railling - Ball Cap

Our Aluminium Railing – Ball Cap is a clean, modern balustrade system designed for residential gardens, patios, terraces and balconies.

It is supplied as a per metre kit, making it easy to calculate exactly what you need for your project. All components are designed to work together for a neat, coordinated finish.

Key Specifications

• Overall height: 1100mm

• Post size: 50mm diameter

• Panel height: 1016mm

• Panel width: 2370mm (fixed panel)

• Finish: Powder coated – Black Sand

• Material: Aluminium (posts & components) with steel railing panel

• Installation: Bolt-down (surface mounted)

This system is suitable for flat areas such as patios, decking and balconies.

What the Kit Contains (Per Metre Guide)

Each metre rate includes:

• 1 x 50mm Bolt-Down Mid Post (1155mm high)

• 1 x Fixed Railing Panel (1016mm high x 2370mm wide)

• 4 x Universal Brackets with fixings

• 1 x 50mm Top Cap (style depends on variant selected)

This packaged approach simplifies purchasing by grouping the core components required to build a railing run.

Additional posts (end, corner or extra mid posts) may be required depending on your layout.

Available in 3 Top Cap Variants

You can choose the finish that best suits your home:

1. Pressed Cap – Clean and minimal, contemporary look

2. Ball Cap – Traditional decorative finish

3. Pyramid Cap – Sharp, architectural style

Each variant uses the same post and panel system — only the cap design changes.

Ideal For

• Garden boundaries

• Raised patios

• Decking areas

• Balconies

• Pathways and steps (flat runs)

Installation Overview

1. Position and mark your post locations.

2. Bolt the 50mm posts securely to a solid surface.

3. Fix the railing panel to the posts using the supplied brackets.

4. Fit the chosen top cap to complete the look.

Installation is straightforward and suitable for competent DIY homeowners or professional installers.
